2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU
Use
1. Descriptions:
The bed board adopts steel slats with a thickness of ≥1.5mm, and
the four frames of the back board are reinforced with sheet metal
to enhance the bearing capacity. The metal surface is
electrostatically sprayed with epoxy resin powder. In order to
achieve the purpose of antirust and antibacterial on the surface of
the workpiece, the workpiece is required to undergo processes such
as acid derusting, alkali neutralization, degreasing, water
rinsing, phosphating, electrophoresis, drying, and spraying.
Standards of use: When the patient goes to bed, turns over, and the
bed panel lifts, there is no sound, and the bed panel is firm and
firm without loosening;
Adopt ABS headboard and tailboard, curved and smooth design,
beautiful and elegant, with hidden locking device, stable and
reliable, easy to disassemble, there is a slot for patient
information card on the outside of the tailboard; universal wheels
Four double-piece plastic-coated wheels, the bed can rotate
Flexible and noiseless; diameter: ≥125mm, with locking, universal
and directional central control locking devices. Equipped with
anti-collision device. The ABS four-leaf flip guardrail is durable,
not easy to corrode, and not easy to age.
There is no noise during operation, and there is a guardrail
control flip switch, and the guardrail can be adjusted and flipped
with one key. The guardrail has a pad operation button function.
Infusion stand jacks Infusion stand jacks (two on the left and two
on the right), which are easy to push out for inspection and use.
There is a drainage hook on each side of the inner side of the bed
frame, and a sundry rack is equipped at the bottom of the bed;
material
Bed frames, bed boards, screws, cranks, bed legs, etc. require a
smooth surface, strong and durable;
Mattress
(1) Specifications: matched with the hospital bed, ≧6mm thick;
(2) Material: ① 4 cm sponge, 4 cm brown, high-density brown sheet,
high-temperature and high-pressure treatment, high-density elastic
sponge, anti-insect treatment, prevent deformation, breathable,
moisture-permeable, mildew-proof, wear-resistant, with The zipper
can be flexibly disassembled; ② Outsourcing high-quality waterproof
cloth, the liquid does not penetrate the surface layer, easy to
wipe, and has air permeability;
(3) It can be bent according to the lifting and lowering of the
back, feet and legs of the bed;
2. Specification:
| External(L*W*H) | 2200(±50mm)×950(±50mm)×380-850(±50mm)mm |
| Height Adjustment | 46~72 cm |
| Mattress Platform | 195*90 cm |
| Safe Working Load | 240 kg |
| Back-rest Adjustment | 0~75 ° |
| Knee-rest Adjustment | 0~40 ° |
| Trendelenburg | 0~12 ° |
| Reverse Trendelenburg | 0~12 ° |
| Voltage and frequency | 100~240 V - 50/60 Hz |
| Linear Motor | 4 pcs |
| 5'' Double Side Castors, Central Locking System | 4 pcs |
| ABS Side Rail Extra Height | 1 set |
| ABS Bed Ends with Safe Lock | 1 set |
| IV Pole | 1 pc |
| IV Pole Prevision | 4 pcs |
| Drainage Hook | 4 pcs |
3. Image details:
Steels| Painting
Baosteel from Fortune Global 500 11 Process epoxy painting, ASTM
testing
anti-baterial, paint thickness0.12 mm, brightness 60°, paint can
resist 50kg impact.
Plastic
Environmental plastic can be sterilized in 100°C, tensile upto
30MPa Virgin
ABS material
Bumper Cover
Reduce the impact of the collision, safe and slinky.
Electric System
Linear motor, with UL/ROHS/EN standard. Noise under 50 dB, with
lifetime
20,000 times movement.
Side Rail
Full ABS material,tuck away side rail with built-in controller.
From top of the
guardrail to bed surface is about 345mm, more height provides
better protection
for patient.
Buttom can endure 100,000times press, buffer, built-in angle
indicator.

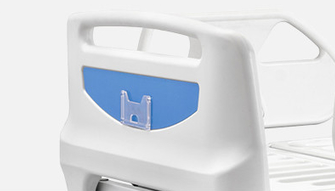

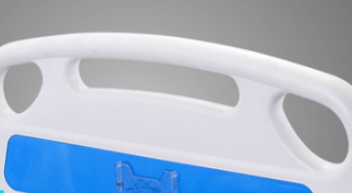

Head & Foot Board
Full ABS material, Buttom can endure 100,000times press Head and
foot
board can be reversable.

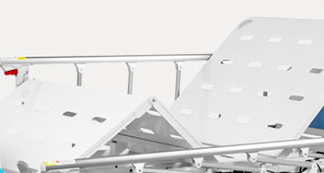

Bed Surface
Stamping forming platform, smooth surface no welding scar, bearing
250 kg
load. Option ABS platform and resin X-ray translucent platform.
Virgin ABS
Environmental plastic can be sterilized in 100℃, tensile upto
30MPa.
Angle indicator
Patented angle indicator.
Design
Mordern design.Use new and strong inserted ABS fire-proof panel
avoid off.
Easy to be cleaned and installed. Net weight over 3.6kg.
Platform
Stamping forming platform, smooth surface no welding scar,bearing
135KG
load. Option resin X-ray translucent platform.
4. Company Profile
Certifications
Product Packaging
5. FAQ
Q1. Are you a factory or trading company?
A: We are a Professional Manufacture for Hospital Furniture. We
have two companies, one is Medical King in countryside that
manufacture products, and another one is Dinggong Medical in
downtown that is for trading.
Q2. Where is your factory located? How can I visit there?
A: Our factory is located in Zhangjiagang, 1 hour far away driving
from Shanghai.
Q3. What is your trading term?
A: 1. Payment term: T/T 50% deposit (at least) after order
confirmed, 50% balance paid against bill of lading, or L/C , or
Western Union for small amount .
2. Lead time: normally in 30 days after deposit received.
3. Sample policy: Samples are always available for each model.
Samples can be ready in 7-15 days once payment received.
4. Shipping port: Shanghai, China
5. Discounts: We offer discount for big quantity.
Q4: How to purchase your product?
A: Quotation → PI → Confirm PI → Arrange 50% deposit (at least)
→Producing →QC inspect → Pay balance → Shipping
